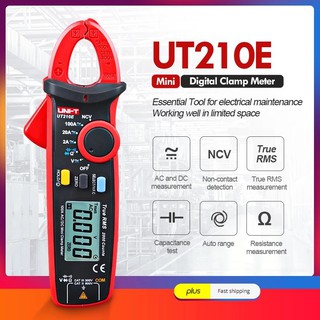

Spell♂UNI-T UT210E Mini Digital Handheld Clamp Multimeter Backlight LCD True RMS Voltmeter Ammeter Ohmmeter AC/DC Voltage Current Capacitance Resistance NCV Continuity Test Diode Tester with Storage Bag

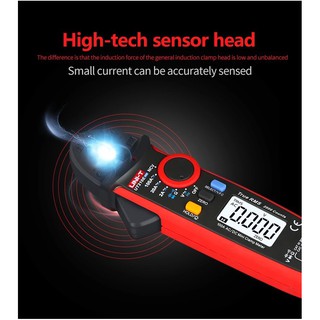

This digital clamp meter
Features high reliability, safety, precision and compact design. Its resolution ratio is 1mA. Maximum range has maximum rage of 100A AC/DC; particular VFC start mode. Entering this mode can accurately measure voltage and current which has VFC frequency conversion. Voltage or current response display is true valid value. Whole range overload protection, reliable measurement accuracy and unique appearance design makes it an outstanding new generation functional electrician/electric power measurement instrument.
Features:
Multi-purpose clamp meter can measure AC/DC voltage, AC/DC current, NCV noncontact electric field, capacitance, diode, resistance and circuit on-off.
Whole range overload protection, reliable measurement accuracy.
Backlight LCD with maximum 2000 counts diaplay.
Data hold, auto range, automatic power-off & low battery prompt functions.
Mini size, portable for field, laboratory, shop, home and many other applications.
Specifications:
Model: UT210E
DC Voltage Range: 200mV/2V/20V200V/600V
DC Voltage Resolution: 0.1mV/1mV/10mV/100mV/1V
AC Voltage Range: 2V/20V/200V/600V
AC Voltage Resolution: 1mV/10mV/100mV/1V
Resistance Range: 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ
Resistance Resolution: 0.1Ω/1Ω/10Ω/100Ω/1KΩ/10KΩ
Circuit Resolution: 0.1Ω
Diode Resolution: 1mV
Capacitance Range: 2nF/20nF~200μF/2mF~20mF
Capacitance Resolution: 1pF/10pF~100nF/1μF~10μF
DCA Range: 2A/20A/100A
DCA Resolution: 1mA/10mA/100mA
ACA Range: 2A/20A/100A
ACA Resolution: 1mA/10mA/100mA
General Characteristic:
Maximum Overload Protection for Clamp Head Terminal: 100A
Maximum Display: 2000 counts, update 2~3 times per second
Diode: approx. 3.2V
Range: automatic(exclusive of electricity gear)
Polarity: automatic
Work Temperature: 0°C~40°C
Relative Humidity: 0°C~30°C: 75%, 30°C~40°C: 50%
Storage Temperature: -10°C~50°C
Work Altitude: 0~2000m
Battery: 2 * 1.5V AAA batteries(not included)
Product Size: 175mm * 60mm * 33.5mm
Product Net Weight: 170g / 6oz
LCD Size: 39.3mm * 21.5mm
Maximum Clamp Head Size: 17mm
Package Size: 18.6 * 7.2 * 5.9cm / 7.3 * 2.8 * 2.3in
Package Weight: 311g / 11oz

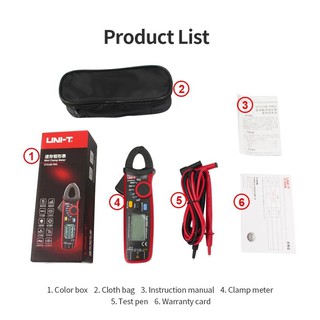

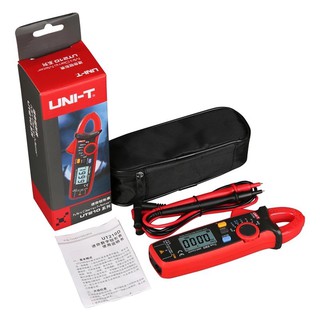

Package List:
1 * Multimeter
1 * Pair of Test Probe
1 * Storage Bag
1 * User Manual(English)
