【พร้อมส่ง】Pecron Solar panels 100W 200W แผงโซล่าเซลล์ แผงเซลล์แสงอาทิตย์ ชาร์จแบตเตอรี่สำรอง โซล่าเซลล์พกพา รับประกัน 2

Specifications 100W
Model Number：PV100

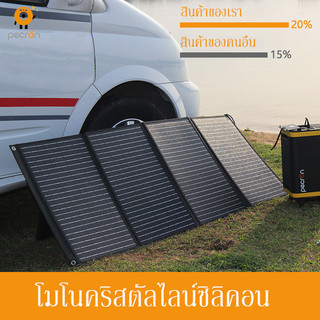

Cell Type：Monocrystalline
Peak Power：105W+5%
Voltage at Max Power(Vmp)：19.4V+5%
Current at Max Power(lmp)：5.4A+5%
Open Circuit Voltage(Voc)：24.5V+5%
Open Circuit Current(lsc)：5.8A+5%
Cell Efficiency：23.5%
Operating Temperature：-20°C~+60°C

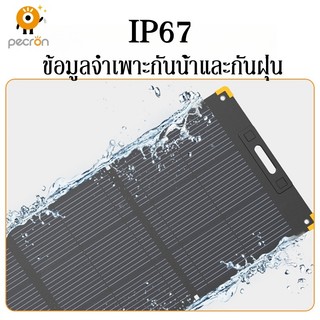

Ingress Protection(lP) Rating：IP67
Fold Dimensions：475*426*42+1mm
Unfold Dimensions：1740*426*27+1mm
Solar panel weight (with adapter cable)：About 3.5kg
Standard Test Conditions：1000w/m2(92.9W/ft2), AM1.5, 25”C(77°F)
Solar panel outlet line length：2m

Specifications 200W
PECRON PV200 Solar Panel: 4-Fold 200W 36V Solar Panel
Nominal Power: 200W(-5W~+10%)
Operating Voltage: 36V±5%
Operating Current: 5.4A±5%
Open-Circuit Voltage (Voc): 41.4V(±5%)
Short-Circuit Current (Isc): 5.7A(±5%)
RatingFold Dimension: 561*595*40mm(±35mm)
Unfold Dimension: 2064*595*5mm(+0.5mm)
Weight: Around 6.9KG

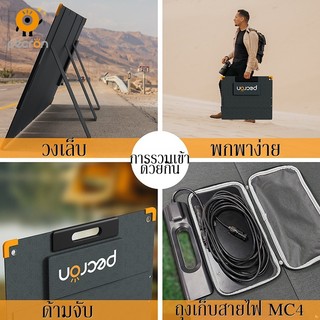

Connector: MC4
Waterproof: IP67
Cell Efficiency: ≥22.5%
Working Temperature： -10°C-+65°C
Solar panel outlet line length：5m

Specifications 300W
PV300: 4-Fold 300W Solar Panel
Cell Type: Monocrystalline
Maximum Power: 300W+5%
Operating Voltage: 36V+5%
Operating Current: 8.3A+5%
Open Circuit Voltage(Voc): 41.4V+5%
Short Circuit Current(lsc): 8.7A+5%
Cell Efficiency: ≥25%
Operating Temperature: -10°C~+65°C
Ingress Protection(lP) Rating: IP67
RatingFold Dimension: 636*789*49mm(±5mm)
Unfold Size: 2362*787*4.5mm(±5mm)
Net Weight: Around 12.74kg(+0.2kg)
Solar panel outlet line length：5m
