The new generation UT33+ series redefines the performance standards for entry-level digital multimeters. Our innovative industrial design ensures that these products can withstand 2 meters drop. The new LCD display layout provides a better user experience. This series ensures that users can work safely in CAT II 600V environment.
Special features are,
2mF capacitance test (UT33A+);
battery test (UT33B+);
temperature measurement function (UT33C+);
non-contact voltage (NCV) test (UT33D+).
Features of UT33+ Series Palm Size Multimeters
● Clear LCD display
● Comfortable protective cover, with test lead hanging groove
● 2 meters drop test, precision protection
● Loud buzzer sound; Ergonomic design

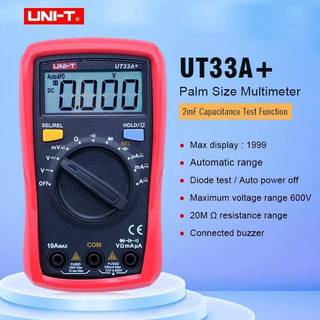

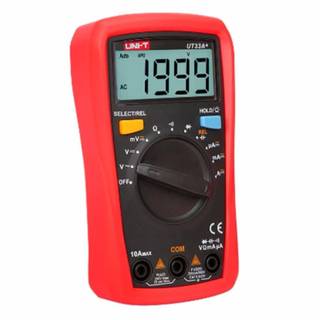

Specifications UT33A+
DC voltage (V) 200mV/2V/20V/200V/600V ±(0.5%＋2)
AC voltage (V) 600V ±(0.7%+3)
DC current (A) 10A ±(1%+2)
AC current (A) 10A ±(1.2%+3)
Resistance (Ω) 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ ±(0.8%+2)
Capacitance (F) 2mF ±(4%+8)
Temperature -
Features
Display count 2000
Auto power off/Auto backlight off √
Diode test/Continuity buzzer √
2m drop test/ Test probe holder √
Range selection Auto
Battery test -
NCV -
Power 1.5V battery (R03) x 2
