⚡ Description :

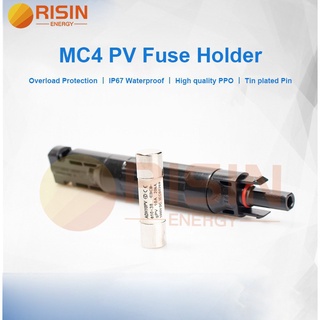

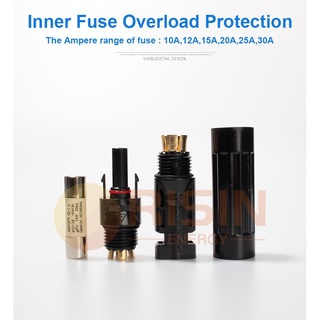

Risin MC4 PV Fuse holder is a 10A,12A,15A,20A,25A,30A gPV fuse embedded into a waterproof fuse holder. It features an MC4 connector lead on each end, making it compatible for use with an Adaptor Kit and solar panel leads. MC4 Fuse Holder is designed to provide complete single circuit protection to your solar power array. The fuses prevent large currents from damaging the solar panels. Advantage is the inline fuse can be replaced,quickly and reliable connection,UV resistance and IP67 waterproof,can be working outdoor for 25years.
📌📌 Pls purchase MC4 Fuse Holder 30A for extra protection in your solar system.
⚡ Technical Data :
Type : MC4 Compatible, fuse replaceable
Rated Voltage : 1000V DC
Rated Current : 30A
Inline Fuse Size : 10x38mm
Fuse Range : 6A, 8A, 10A,12A,15A,20A,25A,30A
Contact Material : Copper, Tin plated
Insulation Material : PPO
Contact Resistance : <1mΩ

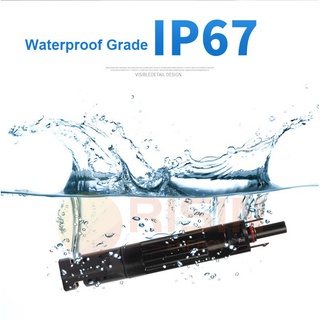

Waterproof Protection : IP67
Ambient Temperature : -40℃~100℃
Suitable Cable : 2.5/4/6mm2 (14/12/10AWG)
Certificate : TUV, CE, ROHS, ISO
⚡ Advantage :
Easy to Use
· Compatible with PV cables with different insulation diameters.
· Designed for a wide range of DC applications.
· Simple plug and play.
· Auto-lock equipment of male and female points render connections easy and reliable.
Safe Protection
· Waterproof – IP67 Class Protection.
· Insulation material PPO.
· High current-carrying capacity
· Protection Class II
· Connector adopts touch and insertion of reed with inner-knob type
⚡ What's in the package :
1pcs of MC4 Fuse Holder & Fuse
🚩🚩 Why Choosing Risin ?
· 12 Years experience in solar factory
· 30 Minutes to reply after received message
· 25 Years Warranty for MC4 Connector, PV Cable
· No compromise on quality
