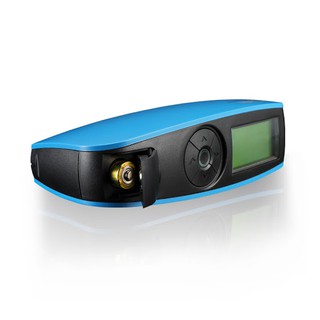

เครื่องวัดความเงา รุ่น YG60S แบรนด์ 3NH
GLOSS METER
YG60S
Features
Elegant Design combined with aesthetics and ergonomics
With auto-calibration function
Meet the second grade requirements of JJG696
Auto Power-off within optional 30-120 seconds
Specification
Model YG60S Economic gloss meter
Measuring Angle 60°
Measuring Area 60°:9X15
Measuring Range 60°: 0~200GU
Division Value 1GU
Measuring Modes Basic mode
Measuring Time 0.5S
Repeatability 0~100GU:±0.5GU ;
100~200GU:±0.5%GU
Accurate Conform with JJG696 second grade requirements of gloss meter
Auto Power-off Time 30s
Long-time Calibration no
Language Chinese & English
Storage no
Display 2.3 inch white and black screen
Size 160*52*84mm
Weight About 300g
Power Supply 1pc dry-cell battery(can measure 10000 times) or use USB Charge
Interface no
PC Software no
Operation Temperature Range 0-40℃(32-104° F)
Storage Temperature Range (-20-50℃)(-4-122° F)
Humidity Range < 85% RH, without condensation
Standard Accessories User manual, calibration plate
Optional Accessories Miniature printer
Notification: the technical parameter is only for reference
