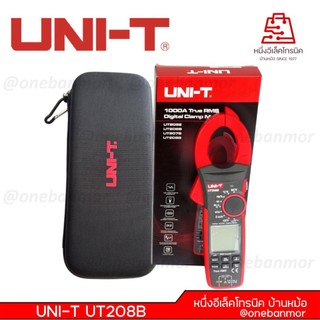

UT208B 1000A True RMS Digital Clamp Meter

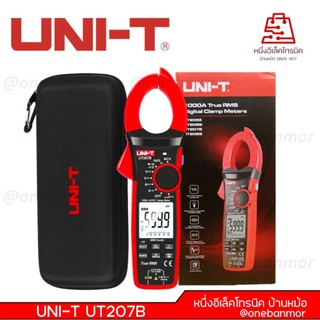

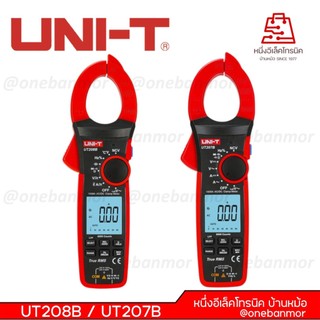

UT200 series are 6000-count digital clamp meters with auto range, large LCD, true RMS, autoscale memory, and NCV functions. They conform to CAT III 1000V/CAT IV 600V safety rating andcertified by CE/ETL. The UT206B, UT207B, and UT208B come with LoZ mode for eliminating ‘ghost ’voltage, LPF ACV function for measuring INV and VFD voltage, and inrush current modefor capturing transient current. The UT206B and UT208B also feature high-precision temperature measurement with 0.1 °C resolution, and can be equipped with a flexible current probe toextend the AC current measurement range to 3000A.
Specifications Range UT208B
AC current (A) 1000A ±(2%+5)
DC current (A) 1000A ±(2%+5)
AC current frequency response 40Hz~400Hz
Inrush current (A) 1000A ±(10%+10)
AC voltage (V) 6V ±(1.2%+3)
60V/600V/1000V ±(1%+8)
DC voltage (V) 600mV ±(0.8%+3)
6V/60V ±(0.5%+5)
600V ±(0.5%+5)
1000V ±(0.5%+5)
Low pas filter (LPF ACV) 600V/1000V ±(2%+5)
AC voltage frequency response 40Hz~400Hz
LoZ ACV 600V/1000V ±(2%+5)
Resistance (Ω) 600Ω ±(1%+3)
6KΩ/60KΩ/600KΩ ±(1%+2)
6MΩ/60MΩ ±(2%+8)
Capacitance (F) 60nF ±(4%+25)
600nF/6μF/60μF/600μF ±(4%+5)
6mF/60mF ±(10%+9)
Temperature (℃) -40℃~300℃ ±(1%+20)
300℃~1000℃ ±(1%+2)
Low voltage frequency (Hz) 10Hz~1MHz ±(0.1%+3)
Duty cycle (%) 10%~90% ±(2.6%+7)
Features
Display count 6000
Jaw opening 42mm
Current frequency 50Hz~60Hz
High voltage frequency 40Hz~400Hz
Analog bar 31
Auto power off √
Continuity test √
Auto/Manual range √
Low battery indication √
Diode test √
Relative mode/Data hold √
MAX/MIN √
Function selection √
Flashlight √
Wake-up function √
Auto power off current: ＜50μA √
Flexible current probe (optional) Extends to 3000A √
Zero mode √
Input impedance (ACV/DCV) ≥10MΩ √
General Characteristics
Power 1.5V battery (R03) x 3
Display 43mm x 45mm
Product color Red and grey
Product net weight 420g
Product size 272mm x 81mm x 43.5mm

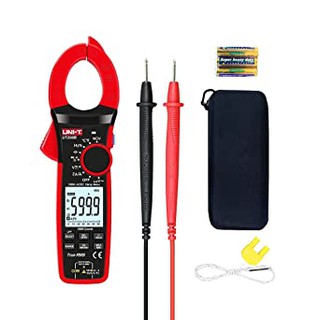

Standard accessories Test leads, batteries, point contact temperature probe
